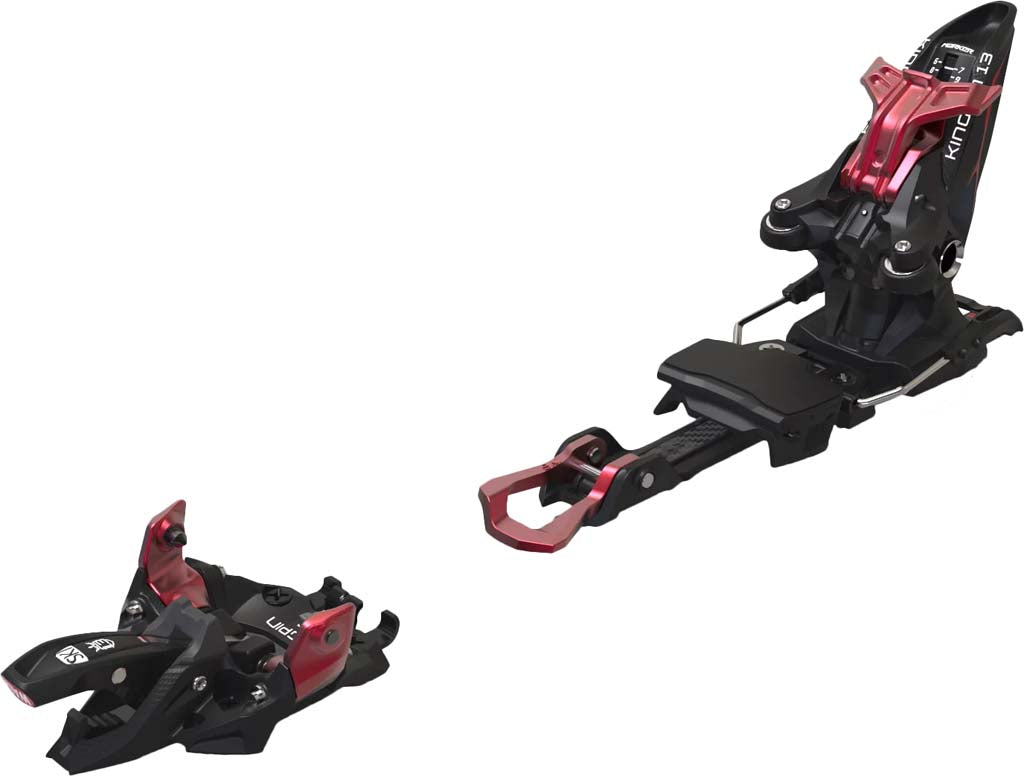

Kingpin 13 Binding - Unisex

The Kingpin sets the benchmark in downhill-oriented performance pin bindings. Its alpine heel delivers outstanding power transmission and ski control and minimises the likelihood of a false release.

The legendary Kingpin combines the lightweight ISI pin toe piece with an alpine heel piece including 0°/7°/13° climbing aid. This makes it very easy to walk on any terrain and ensures great descents with outstanding performance and top-level release functionality. The binding is therefore perfect for ambitious backcountry and freeride touring enthusiasts. A very stiff, carbon-reinforced front with an ISI toe piece makes the binding easier to step into, as a wide footprint with integrated stop automatically positions and aligns your boot. Kinematically optimised pin levers then allow the pins to snap shut with just a gentle push. The wide hole pattern and XXL power transmitters deliver the ultimate in direct power transmission for the utmost control and fun on the descent.

Features:
• Category: Touring Pin
• Brake width: 75 - 100 mm | 100 - 125 mm
• Din/ISO Range: 6.0 - 13.0
• Boot type: Touring Boots
• Recom. Skier's Weight: <120 kg
• Stand height w/o ski: 21,5 mm
• Toe System: ISI Toe
• Step-in Heel: KINGPIN heel
• Heel adjustment range: 25 mm
• Walking modes: 0°, 7°, 13°
• Weight: 715 g (75-100 mm) | 715 g (100-125 mm)

Technology Features:
Climbing aids kingpin
The climbing aid offers two positions with 7° and 13° which can easily be accessed with the ski pole, even in an unstable standing position. Integrated elastomer paddings dampen the impact reducing the irritating traditional “clack” and allow more comfortable hiking.

XXL power transmitter
Extra large power transmitters in the heel with reduced weight for minimum friction and maximum centering for the lateral movement of the heel.

Kingpin heel
The revolutionary heel construction for the Pin Technology bindings features wide sole contact points to deliver the kind of direct, lossless power transfer more frequently seen in alpine bindings. The KingPin heel is also many times safer than traditional Pin Technology bindings.

Carbon reinforced pin toe & anti ice pads
Carbon fiber reinforced material for improved stiffness and super lightweight. Anti Ice Pads in the base of toe to prevent icing in critical areas.

Vertical & lateral adjustable release function
Vertical and lateral individually adjustable release in the heel for improved release functionality.

Crampon Kingpin/ Alpinist
Easy to install crampons for kingpin and Alpinist available in the sizes 80mm, 90mm, 105mm, 120mm

Isi toe
Rubber stop pad: Boot tip is aligned/stopped when stepping in.
Wider step-in platform: Enlarged contact area for boot sole when stepping in.
Easier step-in: Toe piece “snaps/clicks into the boot” with a lot less force required.
